Cleaning Up Corporate ERP Data

The previous posts have used Excel and Python to create and manipulate small spreadsheets. In reality, Python and Excel are especially well suited to tackling large data sets. This post will illustrate some techniques for cleaning up data downloaded from corporate ERP systems such as SAP and Oracle, and getting it ready for some serious data mining with Excel.

In this example, a fictional company called ABCD Catering has recorded sales and order history for 2009 in their corporate ERP system. ABCD Catering provides catering services to leading Silicon Valley companies, providing the best in hamburgers, hot dogs, churros, sodas and other comfort food. Your boss has asked you to examine this data and answer some questions and produce charts representing some of the data:

Generating this information typically involves running five separate reports in the system. Since your boss is looking for this same information at the end of each quarter, you want to simplify your life and your bosses by automating the report. Using Python and Excel, you can download a spreadsheet copy of the raw data, process it, generate the key figures and charts and save them to a spreadsheet.

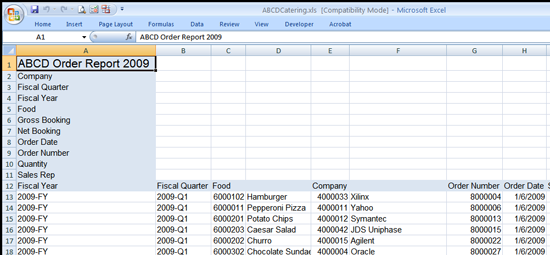

Take a look at the data in ABCDCatering.xls:

ABCDCatering.xls

The spreadsheet contains some header information, then a large table of records for each order. Each record contains the fiscal year and quarter, food item, company name, order data, sales representative, booking and order quantity for each order. The data needs some work before you can use it in a pivot table. First, the data in rows 1 through 11 must be ignored, it's meaningless for the pivot table. Also, some columns do not have a proper header and must be corrected before the data can be used. The good news is that after some minor massaging, this data will be ideally suited for processing with a pivot table in Excel. Close the spreadsheet and get ready to build the reports.

The program begins with the standard boilerplate: import the win32 module and start Excel. If you have questions on this, please refer to Basic Excel Driving with Python and Python Excel Mini Cookbook.

#
# erpdata.py: Load raw EPR data and clean up header info
#
import win32com.client as win32
import sys
excel = win32.gencache.EnsureDispatch('Excel.Application')
excel.Visible = True

Next, open the spreadsheet ABCDCatering.xls with some exception handling. The try/exceptclause attempts to open the file with the Workbooks.Open() method, and exits gracefully if the file is missing or some other problem occurred. Lastly, the variable ws is set to the spreadsheet containing the data.

try:
    wb = excel.Workbooks.Open('ABCDCatering.xls')
except:
    print "Failed to open spreadsheet ABCDCatering.xls"
    sys.exit(1)
ws = wb.Sheets('Sheet1')

An easy way to load the entire spreadsheet into Python is the UsedRange method. The following command:

xldata = ws.UsedRange.Value

grabs all the data in the Sheet1 worksheet and copies it into a tuple named xldata. Once inside Python, the data can be manipulated and placed back into the spreadsheet with minimal calls to the COM interface, resulting in faster, more efficient processing.

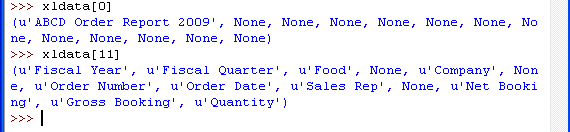

To delete rows, add columns and do other operations on the data, it must be converted to or copied to a list. The approach used here is to examine the data row by row, discarding the non essential header rows and copying everything else to a new list. The first step is to remove the rows that are not part of the column header row or record data. If you are using Python to generate the program interactively, you can investigate the data in the xldata tuple and display the data for the first record (xldata[0]) and header record (xldata[11]):

Data Records

The length of both rows is 13, though xldata[0] contains many elements with a value of None. The following code checks the length of the data and skips any rows shorter then 13 fields or rows that contain None in the last field. Note that this code assumes that the actual data in the table always contains complete records, true in this dataset but you should always understand the characteristics of the data you're working on.

newdata = []
for row in xldata:
    if row[-1] is not None and len(row) == 13:
        newdata.append(row)

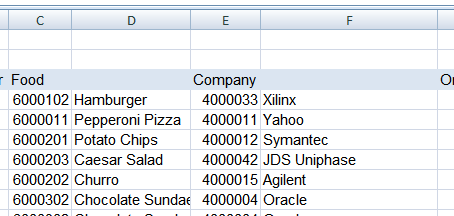

The newdata list now contains the header and data rows from the spreadsheet, but the header row is still not complete. All column headers must contain text in order to use this data in a pivot table. Unfortunately, the spreadsheet downloads produced by the ERP system have the column label over the numberical identifier for the item, while the text column header is blank. You can see that for the "Food" and "Company" data below.

Food and Company Columns

One approach that works for this data is to scan the header and insert a column header based on the contents of the previous column. For example, the label for column F could be "Company Name", created by simply appending the text " Name" to the column header "Company" from the prior column. Using this simple algorithm, the column header row can be filled out and the spreadsheet made ready for pivot table conversion. A more complex lookup could be used as well, but the simple algorithm described here will scale if new fields are added to the report.

for i,field in enumerate(newdata[0]):
  if field is None:
    newdata[0][i] = lasthdr + " Name"
  else:
    lasthdr = newdata[0][i]

Now the data is ready for insertion back into the spreadsheet. To enable comparison between the new data set and the original, create a new sheet in the workbook, write the data to the new sheet and autofit the columns.

wsnew = wb.Sheets.Add()
wsnew.Range(wsnew.Cells(1,1),wsnew.Cells(len(newdata),len(newdata[0]))).Value = newdata
wsnew.Columns.AutoFit()

The last step is to save the worksheet to a new file and quit Excel. The Excel version is checked in order to save the data in the correct spreadsheet format. Version 12 corresponds to Excel 2007, which uses the .xlsx file extension. You also have to specify the constant xlOpenXMLWorkbook to define the type of output Excel file. Earlier version of Excel use the .xlsextension, and because the input file was .xls format, no output format specifier is needed for users of older versions of Excel.

if int(float(excel.Version)) >= 12:
    wb.SaveAs('newABCDCatering.xlsx',win32.constants.xlOpenXMLWorkbook)
else:
    wb.SaveAs('newABCDCatering.xls')
excel.Application.Quit()

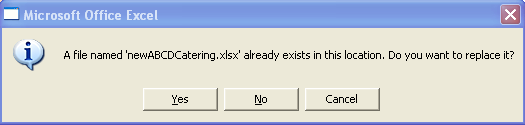

If the file newABCDCatering.xlsx or newABCDCatering.xls already exists in My Documents, you will see the following popup when you run the script.

Error Message

Click "Yes" to overwrite the spreadsheet file. To run the script cleanly, erase the file newABCDCatering.xlsx or newABCDCatering.xls and try the script again.

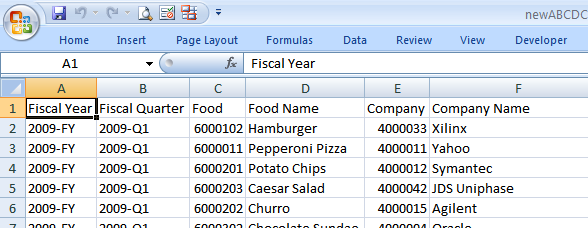

After running the script, open the file newABCDCatering.xlsx or newABCDCatering.xls and view the contents. Note that the extraneous header information has been removed and blank column header information has been inserted programmatically as described earlier.

New Spreadsheet

The new spreadsheet is ready for use in a pivot table, which will be covered in the next post. Here is the complete script, also available at github.

#
# erpdata.py: Load raw EPR data and clean up header info
#
import win32com.client as win32
import sys
excel = win32.gencache.EnsureDispatch('Excel.Application')
#excel.Visible = True
try:
    wb = excel.Workbooks.Open('ABCDCatering.xls')
except:
    print "Failed to open spreadsheet ABCDCatering.xls"
    sys.exit(1)
ws = wb.Sheets('Sheet1')
xldata = ws.UsedRange.Value
newdata = []
for row in xldata:
    if len(row) == 13 and row[-1] is not None:
        newdata.append(list(row))
lasthdr = "Col A"
for i,field in enumerate(newdata[0]):
    if field is None:
        newdata[0][i] = lasthdr + " Name"
    else:
        lasthdr = newdata[0][i]
wsnew = wb.Sheets.Add()
wsnew.Range(wsnew.Cells(1,1),wsnew.Cells(len(newdata),len(newdata[0]))).Value = newdata
wsnew.Columns.AutoFit()
if int(float(excel.Version)) >= 12:
    wb.SaveAs('newABCDCatering.xlsx',win32.constants.xlOpenXMLWorkbook)
else:
    wb.SaveAs('newABCDCatering.xls')
excel.Application.Quit()

Prerequisites

Python (refer to http://www.python.org)

Win32 Python module (refer to http://sourceforge.net/projects/pywin32)

Microsoft Excel (refer to http://office.microsoft.com/excel)

Source Files and Scripts

Source for the program erpdata.py and spreadsheet file ABCDCatering.xls are available athttp://github.com/pythonexcels/examples

Thanks — Dan
